Cashless Outdoor Payment Terminal (COPT)
- Retail Systems
- Download File
Self-service terminal for secure payment with credit/debit cards.
- Equipped with latest version electronics
- Communication with Fuel Dispensers of all major manufacturers
- Easy, fast and safe self-service operation
- Connectivity with the Forecourt Control or POS System through IFSF Interface.
Standard EMV Level 2 card reader, for credit card (Master, Visa etc.) acceptance.
Main characteristics:
- Reliability: heavy duty external metal panel that provides durability in harsh environmental conditions.
- Safety: components which do not allow any force entry or sabotage.
- Open Communication: IFSF communication protocol (International Forecourt Standards Forum) enables connection with Fuel Dispensers of all major manufacturers.

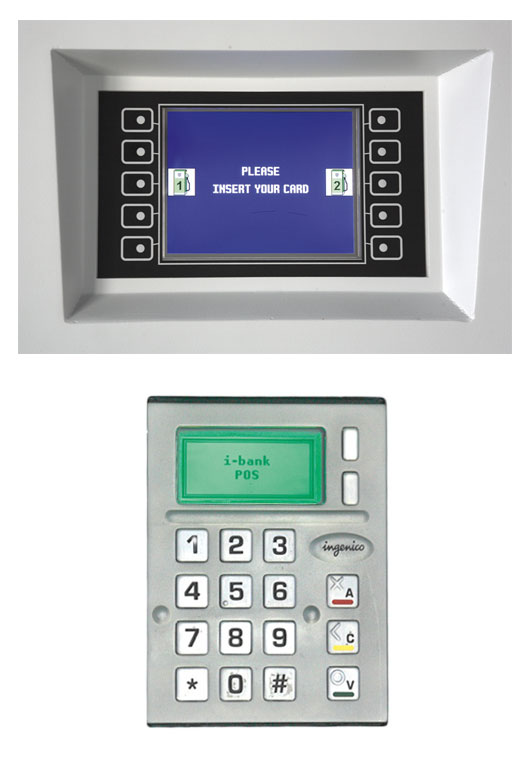

Main parts
Display
- Back lighted colored TFT 5.7"
- 10 ATM-style, back lighted, vandal proof SOFT Buttons.
Receipt Printer
- High resolution thermal printer -Hengstler Germany- (100 mm/sec/200dpi)
- Paper-end & near paper-end sensors.
Error notification
Notification concerning alarms/performance error/communication error through sms messages (optional)
Keypad
- High aesthetics design, in compliance with ISO 9564 standard.
- 16 metallic, vandal proof buttons: wide, wide-spaced, featuring precise tactile sensibility.
- 10 numeric buttons.
Sound Option
MP3 audio messaging
Languages
Available in any language.
Forecourt Control
Controls up to 10 Fuel Points (pump sides).
Certifications
CE marking
- EU Directive LVD 73/23/CEE
- EU Directive EMC 89/336/CEE
Legal Metrology
- In compliance to EU directive MID 2014/32/EU
- Performance according to OIML R117/R118
Operating conditions
- Working temperature –25°C to +55°C, with relative humidity up to 95%
- IP33D degree of protection according to EN 60529/IEC 529 standard
- Voltage: 230 Vac – 50 Hz
